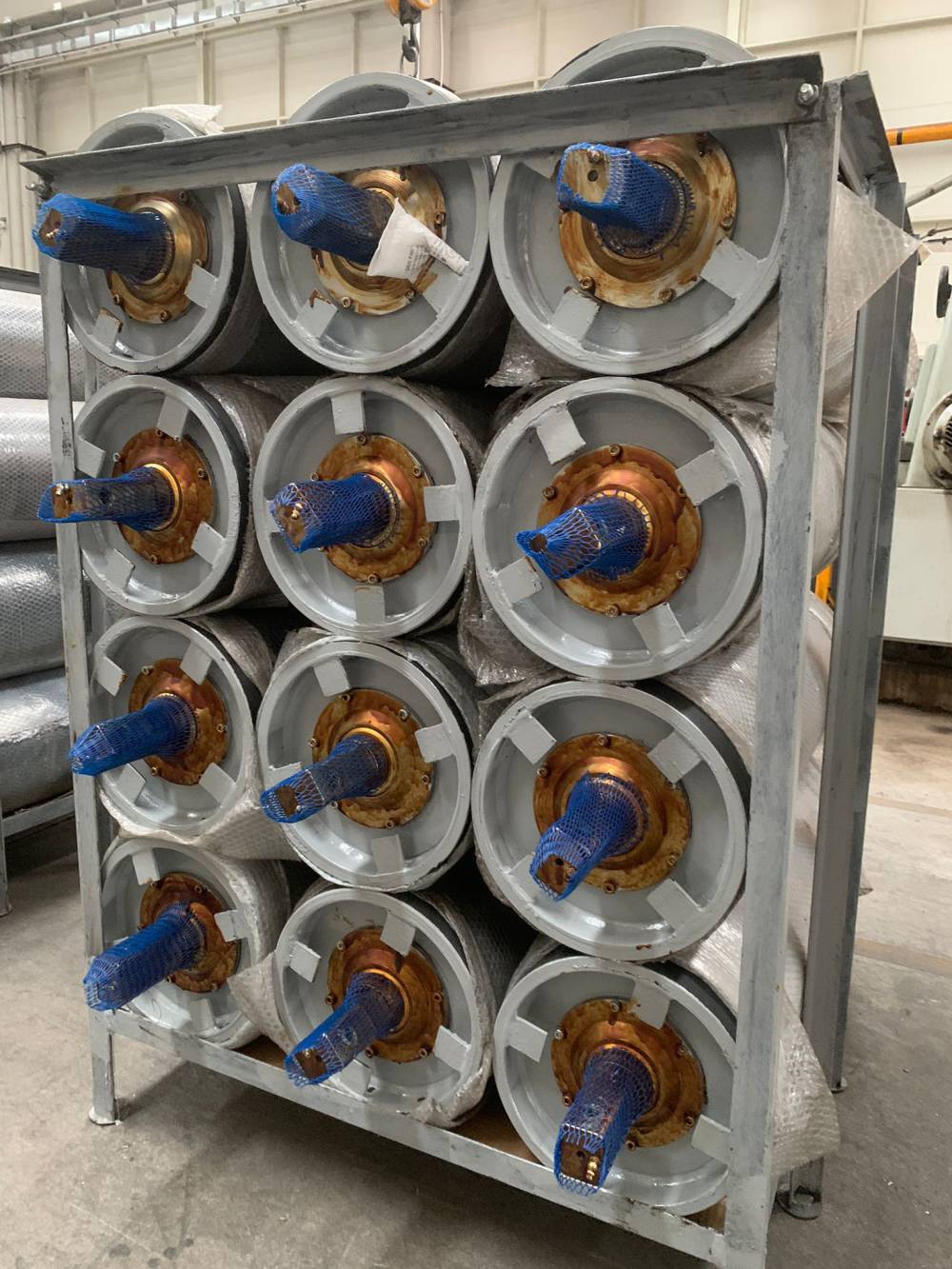

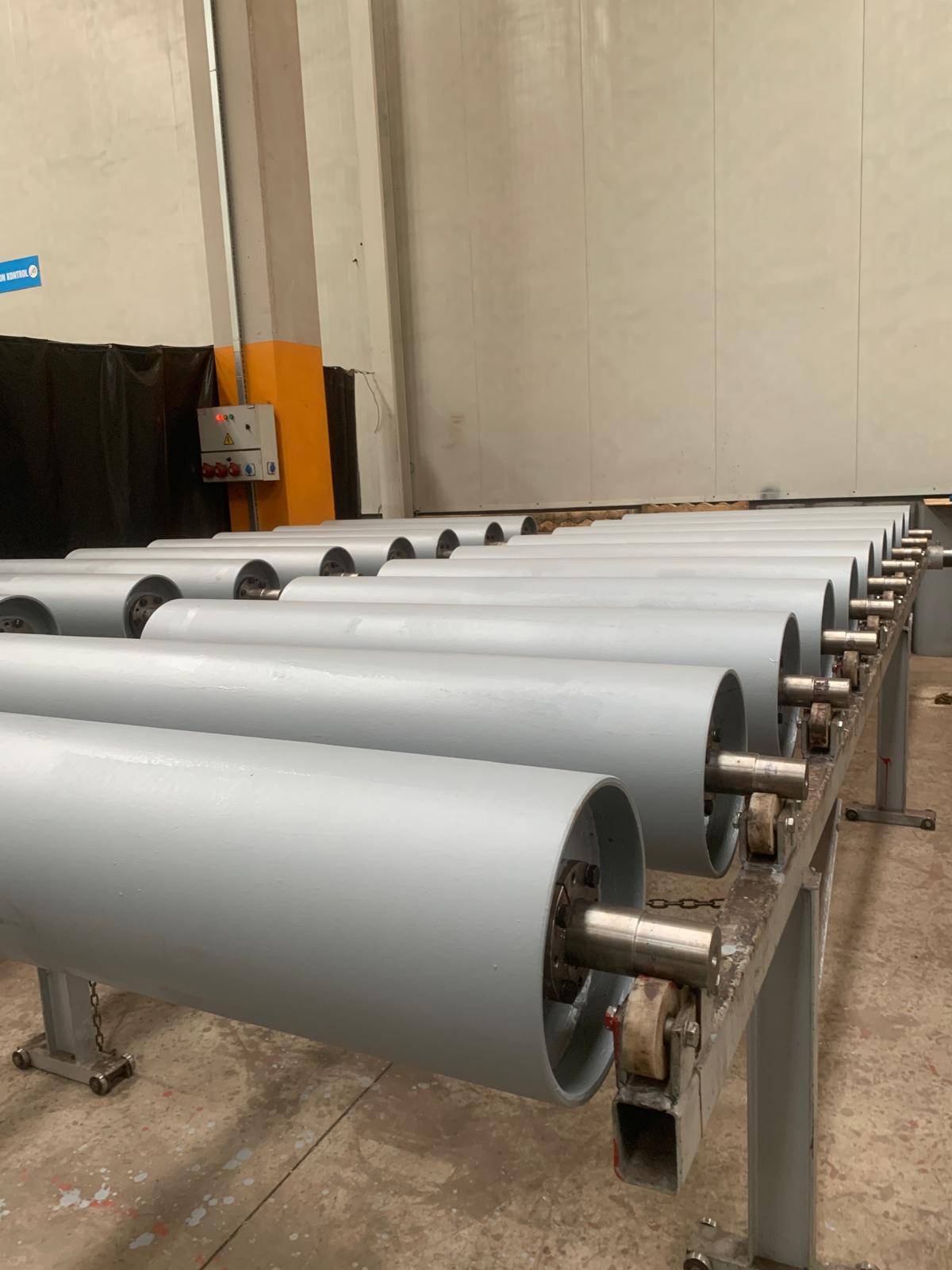

In case conveyor belt length is short, it is fitted at the end of belt as conveyor tail drum and connected to drum shaft of tensioning system.
In the event that conveyor belt length is long, it is fitted at the end as tail drum and used along with weight mechanisms in belt tensioning system. In general, rubber coating is not made on conveyor drum body pipe. It is with detachable shaft,connected to drum pipe via clamp system
DIN 2448 steel drawing pipes made in the thickness such as 0-15 mm, small diameter pipes from Ø600 mm with folding method in the thickness suitable for project from St 37,2 - St 52 quality iron sheet, product of Ereğli, pipes with diameter of Ø600 mm and above are used. By giving taper of 1º per 3/2 on outer surfaces of drum pipes, trip, slide of belt will be prevented. Diameters of drum pipes changes between 220 mm and 1400 mm according to length and width of belt calculated as per load to be carried and surface width are between 400 mm and 3000 mm.
