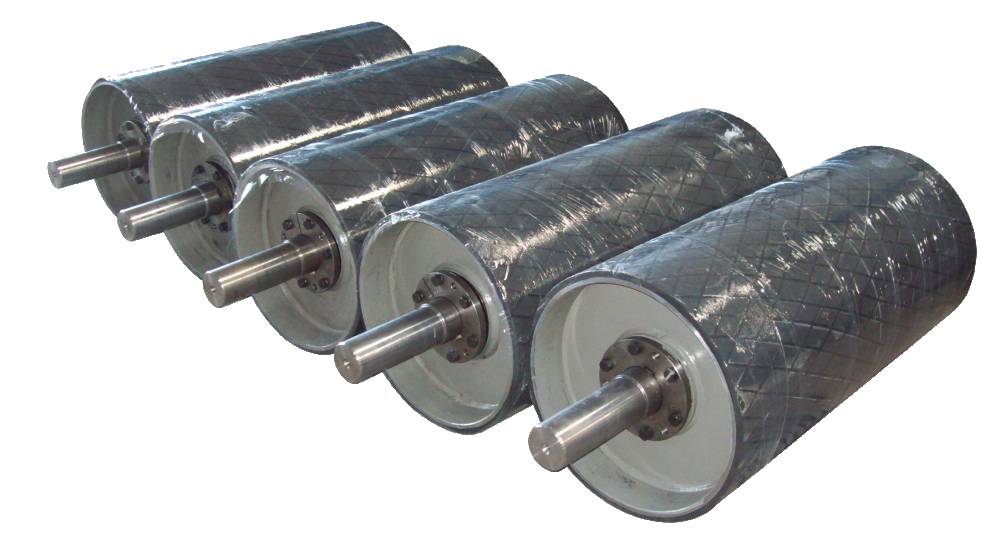

Products Conveyor Drum Vulcanized Rubber Coated Conveyor Drive Drum
Category: Conveyor Drum
Conveyor Equipment
Category: Conveyor Drum
Conveyor Equipment
The thing starting to move conveyor belt strap is conveyor drums. Conveyor drums fitted head of conveyor belt. In the event that conveyor belt length is long, vulcanized rubber coated drive drum more than one can be used in a belt plant. Good grabbing on body pipe of drum, rubber coating is made. It is with detachable shaft, connected to drum pipe via clamp system.
DIN 2448 steel drawing pipes made in the thickness such as 0-15 mm, small diameter pipes from Ø600 mm with folding method in the thickness suitable for project from St 37,2 - St 52 quality iron sheet, product of Ereğli (Turkey), pipes with diameter of Ø600 mm and above are used. By giving taper of 1º per 3/2 on outer surfaces of drum pipes, trip, slide of belt will be prevented. Diameters of drum pipes changes between 220 mm and 1400 mm according to length and width of belt calculated as per load to be carried and surface width are between 400 mm and 3000 mm.
